Audio Routers
Bea3x: the universal audio expansion
A versatile, customizable audio engine with integrated routing, DSP, and 4096×4096 I/O crosspoints for advanced applications.
Audio Advancement
The Ultimate Customizable Audio Engine for Advanced Applications
-

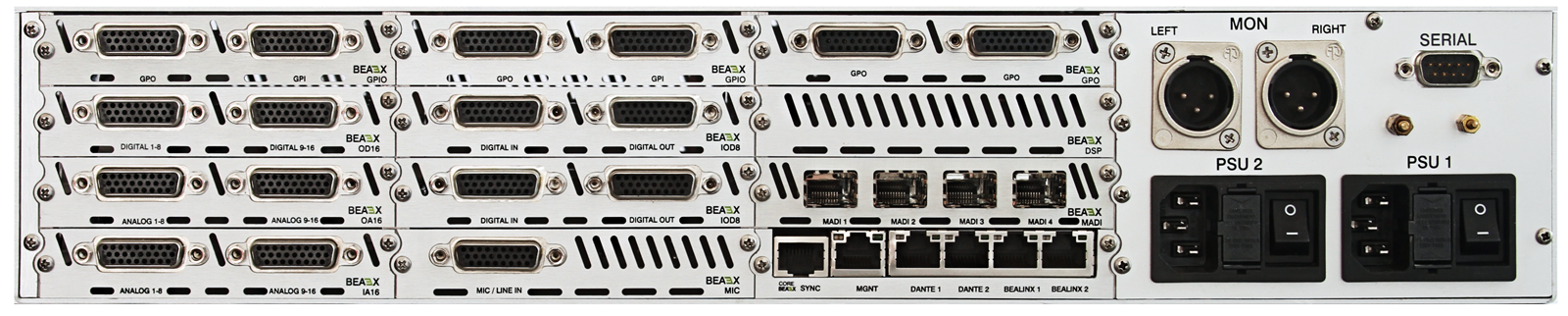

19” 2 RU Engine with control system signal processing and audio interface
-
Integrated Routing System with up to 4095 x 4096 I/O
-
Modular DSP structure. 48 channel full processing for each DSP board
-
Changeover functionality
-
Redundant Hot Swap PSU
-
Touch display
Discover the Versatility of Bea3x
Discover BEA3X: A Configurable Audio Engine with DSP and Integrated Routing
BEA3X is a cutting-edge and highly adaptable Input and Output engine, featuring a modular DSP structure. Tailor your audio experience by adjusting the required DSP power and I/O cards for any application. Benefit from seamless networking capabilities that allow audio and control sharing. The 19″ 2 RU Engine boasts a control system signal processing and audio interface, along with a remarkable 4096×4096 I/O crosspoint.
With a user-friendly touch LCD interface, monitoring selected I/O channels through the headphone output, and a double hot swap power supply system, BEA3X enhances convenience and efficiency. Embrace the future with integrated DANTE Audio Over IP and BEALINX integrated board, providing a proprietary audio signal bus with 512 channels. Take full control of your audio processing with 4 band parametric Eq, Compressor, Expander Gate, De-Esser, and Delay, all fully assignable to each I/O channel. Elevate your audio applications to new heights with BEA3X’s limitless possibilities.
Elevate Your Audio Experience
BEA3X - Unleash Limitless Audio Possibilities
Empower Your Audio Experience with Cutting-Edge Technology and Seamless Networking Capabilities
Unleash the extraordinary capabilities of BEA3X, the audio engine that will take your sound experience to the next level. With its modular DSP structure, BEA3X puts you in complete control of processing power and I/O connectivity options, perfectly tailored for any application. Benefit from seamless networking capabilities to share audio and controls effortlessly. Download the brochure now to explore how BEA3X can revolutionize your approach to audio, offering unmatched versatility and limitless possibilities.
Advanced Audio Processing
Cutting-edge Engine
Seamless Networking
Audio Cards Bea3x
Audio cards
BEA3X Audio Cards: Power and Integration for Your Audio Network
Explore the dedicated section of BEA3X Audio Cards – a diverse range of powerful options specially designed to amplify the capabilities of your BEA3X router. Whether you require AES/EBU I/O, Mic/Line Inputs, Analog Inputs/Outputs, Dante AES67, MADI I/O, DSP processing, IP Codec, GPIO, or GPO functionalities, our selection has you covered! Each Audio Card is meticulously crafted to ensure seamless integration and deliver exceptional audio performance. Unleash the full potential of your audio network with BEA3X by exploring our comprehensive range of Audio Cards!
AUDIO CARDS
Feature-Rich BEA3X Cards
Unparalleled Audio Processing & Functionality
Explore our range of feature-rich cards designed for BEA3X, offering unparalleled audio processing and enhanced functionality.
BEA3X-BRAIN
A vital component for seamless audio distribution and advanced mixer control

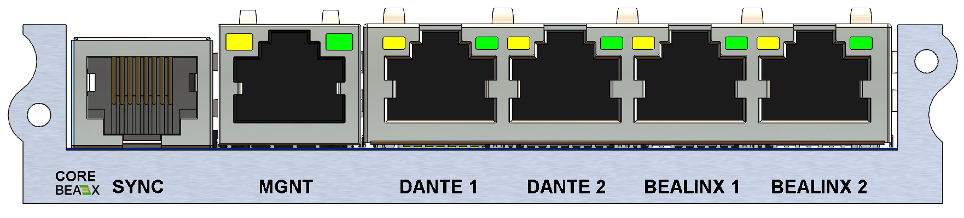

BEA3X-CORE
The central system matrix consolidates audio lines for seamless communication
BEA3X-MADI
Card with 4 SFP cages to accommodate SFP modules for MADI signal
BEA3X-IOD8
The ideal digital audio interface for seamless signal management
BEA3X-OD16
Amplify your audio signals with BEA3X-OD16, the ultimate digital output interface
BEA3X-OA16
The ultimate analog output interface that maximizes your audio signals
BEA3X-IA16
The BEA3X-IA16 board is the analogue input interface for audio signals
BEA3X-GPIO
BEA3X Board with 12 GPO and 12 GPI, Featuring Dual DB26 Connectors
Unlock the Power of BEA3X
Discover the full potential of BEA3X with our feature-rich cards, providing unmatched audio processing and enhanced functionality. Whether you need versatile I/O options, extensive networking capabilities, or precise control over your audio experience, our cards have got you covered. Embrace the future of audio technology and elevate your applications to new heights with BEA3X’s limitless possibilities. Explore our range of cards now and experience audio innovation like never before. Unleash the true power of BEA3X today!
